I have a Montgomery Ward lawnmower my Dad bought... at least 30 years ago, probably more. I've been using it as my "weed lawnlower" for the past 10 years.

It has run surprisingly well during those years I've owned it, even though I've not taken care of it properly. Each Spring when I pull it out of the shed, I'm always expecting it to not run... but it surprises me each time it does.

Well, this year it didn't :(

I watched some videos (below) and things looked pretty old, dirty, and needing a lot of attention:

So I undertook some learning and work:

1) Drained all the horrible old gas
2) Replaced the gas line that was cracked / leaking
3) Took out the carb bowl and cleaned it all up, including the plugged-up bowl nut (most videos show this is usually the main problem) with carb cleaner
4) Carb cleaner all around everything
5) New spark-plug & air filter

Looked a bit better:



... but still didn't start up :(

Did some trouble-shooting, and discovered this:


Turns out "spark plug gap" is a bit more important to check than I realized

Now it runs GREAT!
:celebrate

Finally was able to do some overdue weed abatement :D



Nifty

Super Self-Sufficient
Administrator
Joined
Nov 13, 2007
Messages
1,360
Reaction score
145
Points
227
Videos that were VERY helpful in the process:




Nifty

Super Self-Sufficient
Administrator
Joined
Nov 13, 2007
Messages
1,360
Reaction score
145
Points
227
Oh, and I was able to do some MAJOR tune-ups on my string trimmer carburetor too following this video:



Mini Horses

Sustainability Master
Joined
Sep 2, 2015
Messages
4,200
Reaction score
4,776
Points
302
Location
coastal VA
Great job!! :clap

I've worked on things the same way...hoping and often pleased with results.


farmerjan

Almost Self-Reliant
Joined
Mar 12, 2017
Messages
393
Reaction score
743
Points
152
Location
Shenandoah Valley, Va
I have a Montgomery Ward lawnmower my Dad bought... at least 30 years ago, probably more. I've been using it as my "weed lawnlower" for the past 10 years.

It has run surprisingly well during those years I've owned it, even though I've not taken care of it properly. Each Spring when I pull it out of the shed, I'm always expecting it to not run... but it surprises me each time it does.

Well, this year it didn't :(

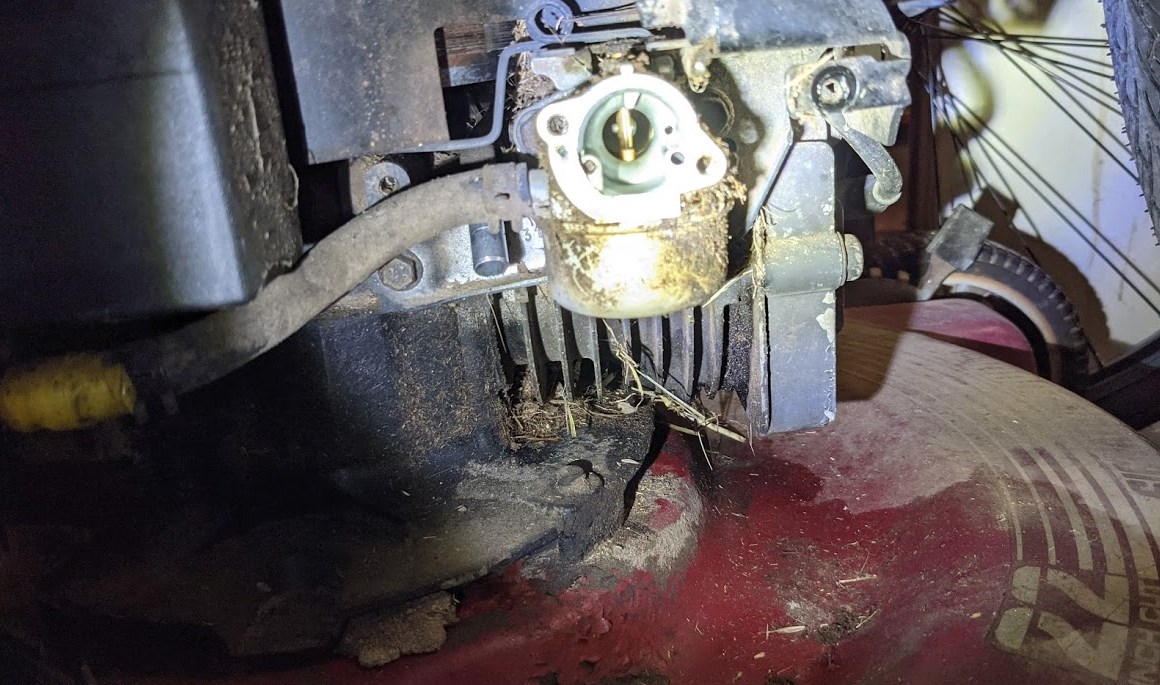

I watched some videos (below) and things looked pretty old, dirty, and needing a lot of attention:
View attachment 15636

So I undertook some learning and work:

1) Drained all the horrible old gas
2) Replaced the gas line that was cracked / leaking
3) Took out the carb bowl and cleaned it all up, including the plugged-up bowl nut (most videos show this is usually the main problem) with carb cleaner
4) Carb cleaner all around everything
5) New spark-plug & air filter

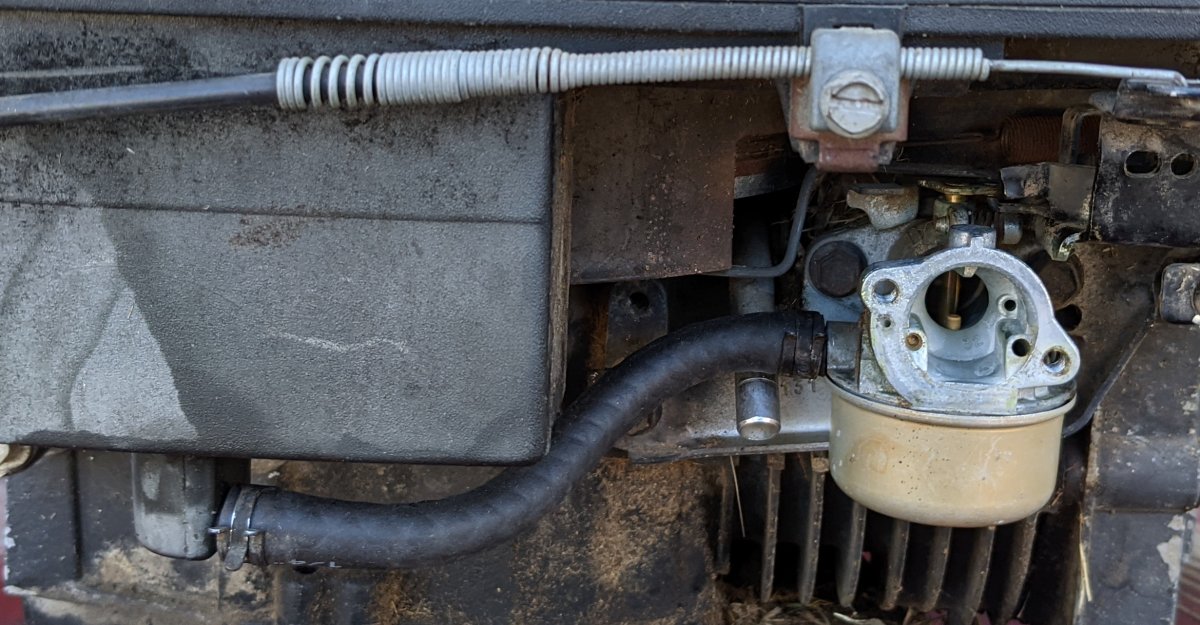

Looked a bit better:

View attachment 15637

... but still didn't start up :(

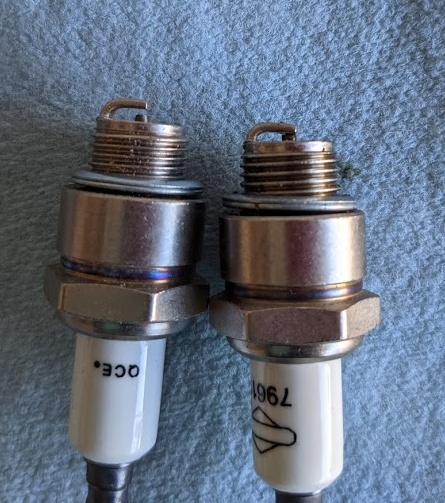

Did some trouble-shooting, and discovered this:
View attachment 15638

Turns out "spark plug gap" is a bit more important to check than I realized

Now it runs GREAT!
:celebrate

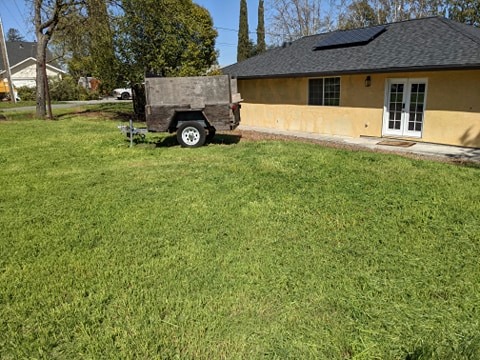

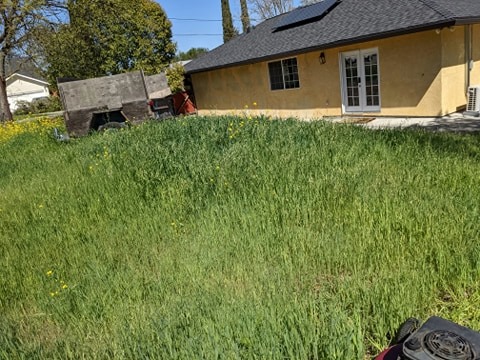

Finally was able to do some overdue weed abatement :D

View attachment 15639View attachment 15640
nice transformation..... those older ones will run forever if you take care of them....


Nifty

Super Self-Sufficient
Administrator
Joined
Nov 13, 2007
Messages
1,360
Reaction score
145
Points
227

CrealCritter

Sustainability Master
Joined
Jul 16, 2017
Messages
6,467
Reaction score
7,467
Points
307
Location
Zone 6B or 7 can't decide
Maybe we need a master tinker' title on here? :)

If feels good to get something old working again. It's a sense of accomplishment and well deserved.

Good Work

Last edited:

Nifty

Super Self-Sufficient
Administrator
Joined
Nov 13, 2007
Messages
1,360
Reaction score
145
Points
227
If feels good to get something old working again. It's a sense of accomplishment and we'll deserved.
Totally agree!!!

It felt good to keep it working and away from potentially ending up in a landfill.

All that said, I'm sure my feelings of pride & success would have been replaced with frustration had I not gotten it to work ;)


CrealCritter

Sustainability Master
Joined
Jul 16, 2017
Messages
6,467
Reaction score
7,467
Points
307
Location
Zone 6B or 7 can't decide
Totally agree!!!

It felt good to keep it working and away from potentially ending up in a landfill.

All that said, I'm sure my feelings of pride & success would have been replaced with frustration had I not gotten it to work ;)

We'll honestly, you can actually work on older stuff and almost always fix it pretty easily. It's the newer stuff that is next to impossible to fix and usually ends up in the landfill, sadly.
