Going All Grain

CrealCritter

Super Self-Sufficient
Joined
Jul 17, 2017
Messages
4,533
Reaction score
4,861
Points
277
Location
Zone 6B or 7 can't decide
I was kind of set on a electric robobrew or mash & boil to go all grain brewing, but my buddy was sold out.

So I decided I'm going to go more of a traditional route and build a mashtun and upgrade my brew kettle to real brew kettle.

For the mashtun I'm going with a converted 10 gallon water cooler. This should allow me to mash and batch sparge the biggest of grain bills for a 5 gallon batch of beer. By going all grain, the sky's the limit and repeatability can be more easily be achieved.

My son in law has been talking to me about opening a micro brewery. I keep telling him we need to develop a few good beers that everyone really likes and be able to reproduce them consistently first before I'll even consider something like that. I mean you have to have a good product before you can market it to the masses.

Hopefully by going all grain it's is a step in the right direction, to be able to produce consist small batches of beer.


wyoDreamer

Super Self-Sufficient
Joined
Sep 29, 2014
Messages
1,161
Reaction score
1,122
Points
227
I feel like I am reading a foreign language, lol. Goos luck with whatever it is you are trying to do.


flowerbug

Almost Self-Reliant
Joined
Oct 24, 2019
Messages
736
Reaction score
620
Points
137
Location
mid-Michigan, USoA
i'm guessing that what they are talking about is instead of buying premade malts and extracts that they want to start doing their own sprouting of grains (to be turned into malts). as i've not ever studied beer making i'll admit i'm just guessing here. :)


CrealCritter

Super Self-Sufficient
Joined
Jul 17, 2017
Messages
4,533
Reaction score
4,861
Points
277
Location
Zone 6B or 7 can't decide
i'm guessing that what they are talking about is instead of buying premade malts and extracts that they want to start doing their own sprouting of grains (to be turned into malts). as i've not ever studied beer making i'll admit i'm just guessing here. :)
Yes and no...

I'll purchase whole already malted (sprouted) and kilned barley. I'll crack them myself to turn them into grist. Then I'll mash the grist in the mash tun.

If your interested, there's a pretty good high-level article here ---> http://www.ritebrew.com/v/vspfiles/files/resources/AllGrain.pdf

Mashing is simply adding the grist to soft water heated to around 150 degrees and allowed to sit for at least 30 to 90 minutes (typically 60 minutes) at that temperature. This allows the enzymes already present in the barley to convert starches into sugars. This process is called lautering.

The amount of starches that are converted to sugars is called Brew House efficiency. The typical Brew House efficiency is 75%. You could also add α‐amylase enzyme or β‐amylase enzyme to increase efficiency. As matter of fact that's what commercial Lite Beer brewery's use to decrease the starch content thus reducing calories in their end product, but you sacrifice taste by reducing starches. This is why most Lite Beers are tasteless and a hop explosion in your sinus cavity. They mostly increase the aroma hops during the brewing to give the impression of taste or they may dry hop during secondary fermentation. All this hop game playing, is not what I call a real beer.

Yes your right, once I'm set up for all grain, I will no longer have to purchase liquid or dried malt extracts.

Last edited:

CrealCritter

Super Self-Sufficient
Joined
Jul 17, 2017
Messages
4,533
Reaction score
4,861
Points
277
Location
Zone 6B or 7 can't decide
Another thing I was reading about that I thought interesting. Adding dissolved Beano® Tablets - Alpha-D-Galactosidase Anti-Gas Pills to increase efficiency even further than α‐amylase enzyme or β‐amylase enzyme. Of course I wouldn't be playing any games with any of these. But might come in handy for mashing corn liquor 😉

Last edited:

CrealCritter

Super Self-Sufficient
Joined
Jul 17, 2017
Messages
4,533
Reaction score
4,861
Points
277
Location
Zone 6B or 7 can't decide
I purchased the 10 gallon water cooler from Home Depot today. For some odd reason I didn't think it would be so big, I guess a 10 gallon water cooler is big. Now I just got to convert it into a Mash & Lauder Tun. I think I'll go for a stainless false bottom so I can batch and then later fly sparge when I get more experience under my belt.

Batch sparging is dumping 170 degree water overtop of the gain bed to wash the sugars off them after you mash them.

Fly sparging is pretty much the same but instead of dumping water, you spray a mist of hotter water over top of the grains. This is supposed to be more efficient because you don't disturb the grain bed to much with a misting. But I've never done a fly sparge before, so it's just book learning talking.


CrealCritter

Super Self-Sufficient
Joined
Jul 17, 2017
Messages
4,533
Reaction score
4,861
Points
277
Location
Zone 6B or 7 can't decide
Horray I got my Home Depot Rubbermade 10 gallon water cooler converted into a mash tun.

I really can't stand plumbing, but I went and talked to my buddy at the Homebrew store. He had everything I needed and for a lot less than I had anticipated. The best part is every part that went into the conversion including the cooler is Made In USA :) I'm really glad we are making steel here in the USA again, it's so much better quality than made in a far away land across the pond (China).

304 Stainless steel bulkhead and barb

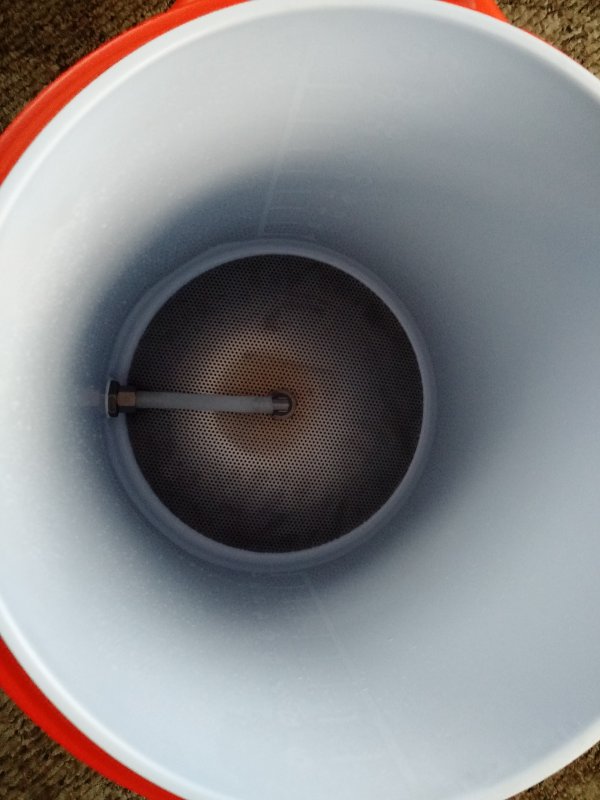

Inside - 12" domed false bottom, barb, street elbow, nut with silicone gasket all 304 stainless steel and high heat silicone tubing.

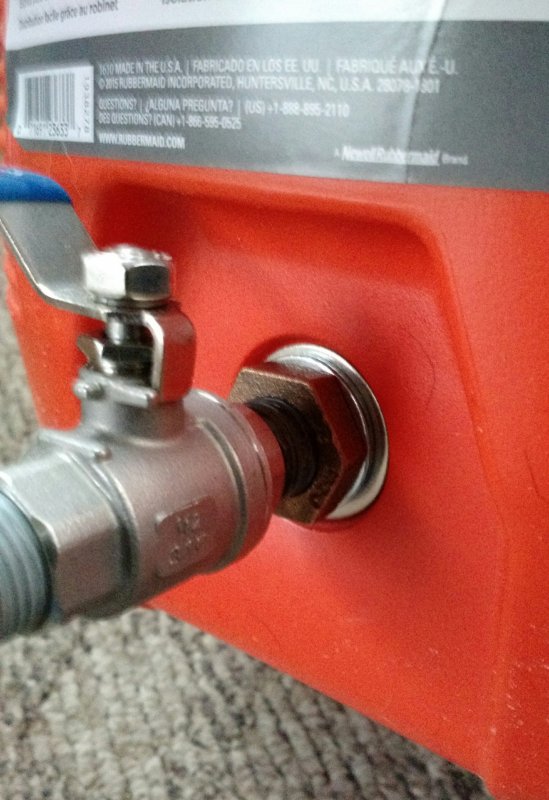

Weldless bulkhead assembly with a brass nut and 304 stainless steel nipple and washers.
.

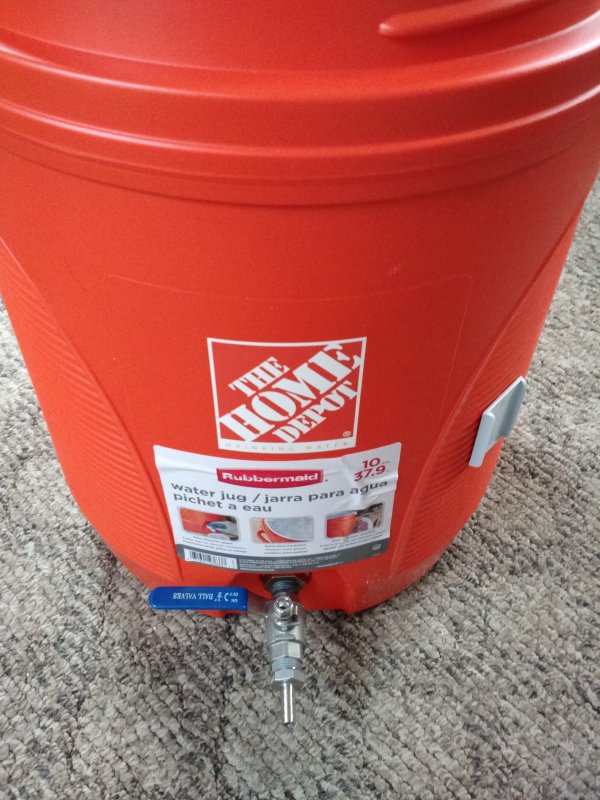

I guess some people see a 10 gallon water cooler but some other people see a mash tun :)

Last edited:

CrealCritter

Super Self-Sufficient
Joined
Jul 17, 2017
Messages
4,533
Reaction score
4,861
Points
277
Location
Zone 6B or 7 can't decide

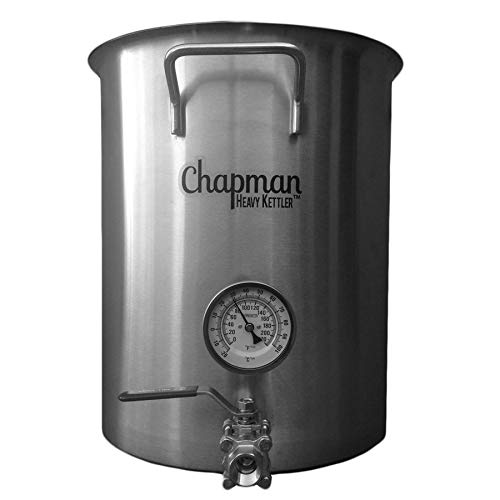

Meet my new kettle, it's 20 gallons, 18 gauge 304 stainless steel with 5mm thick tri-clad bottom to prevent scorching and weighs 30 lbs empty. It has welded 304 stainless ports for the bulkhead and thermometer. I also have 304 stainless plugs for cooking without the bulkhead and thermometer. So It's not only for brewing beer but for canning, deep frying turkey and large batches of soups, stews, gumbo's, witches brew, etc... properly cared for, It should last a life time and then some. Made in Portland Oregon of all places... No more excuses from the wife "I don't have a pot big enough" 🤭

Last edited:
