DIY sprinkler-stand upgrade

Discussion in 'DIY - Do-It-Yourself Projects, Construction, Etc.' started by Joel_BC, Sep 1, 2013.

  1. Jul 17, 2017
    Joel_BC

    Joel_BC Super Self-Sufficient

    Joined:
    Nov 21, 2011
    Messages:
    1,239
    Likes Received:
    268
    Trophy Points:
    217
    Location:
    Western Canada
    I'm posting an update to the two sprinkler-stand base threads I've posted here on S.S. (The other thread is here: https://www.sufficientself.com/threads/a-new-sprinkler-stand-base-i-made.14091/ )

    I thought of a refinement that would make my sprinklers more versatile, and make managing the sprinklers just a shade easier for us. We usually are wanting to use one of two types of sprinkling heads. One is an "impact" type, which shoots out a strong pulsed stream of water, tending to throw it quite a ways, but not casting much water onto the soil nearer the sprinkler stand. The other is locally called a "butterfly" type, which spreads an umbrella of soft rain-like water, but has a smaller radius of effect.

    Using galvanized steel fittings to allow me to connect hose snap-on couplers onto the upright pipe of a stand and also onto the sprinkler head itself. Hence the sprinkler heads become easily interchangeable in a matter of seconds.

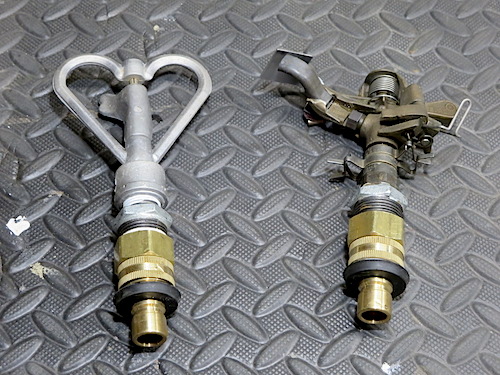

    The "Butterfly" is on the left, "Impact" on the right. You can see one part of the quick-couple (hose-type coupler) attached to each.

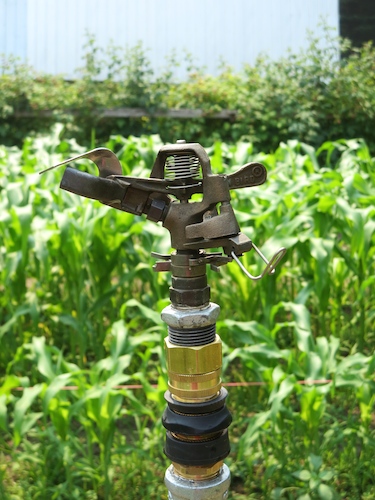

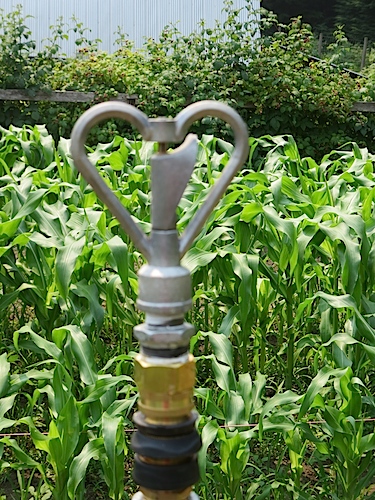

    Each of the heads is shown attached to the top of the sprinkler pipe.
    I've got two sprinkler stands for our larger garden, and can exchange among several heads to get what we need at a particular time of the specific portion of the garden.

    I think it's pretty likely that some company or another has mass produced an attachment system like the one I've made, but I haven't seen it for sale in the local farmers' or gardeners' supply stores. Anyhow, I do enjoy DIY.

    Last edited: Jul 23, 2017
    crealbilly and Beekissed like this.
  2. Aug 5, 2017
    CrealCritter

    CrealCritter Almost Self-Reliant

    Joined:
    Jul 17, 2017
    Messages:
    815
    Likes Received:
    986
    Trophy Points:
    157
    Really great stand and attachment setup you designed and built, sturdy and built to last unlike the cheap plastic junk nowadays.

    Joel_BC likes this.
  3. Aug 5, 2017
    Joel_BC

    Joel_BC Super Self-Sufficient

    Joined:
    Nov 21, 2011
    Messages:
    1,239
    Likes Received:
    268
    Trophy Points:
    217
    Location:
    Western Canada
    Oh man, do I agree about the 'plastic junk'! :tongue Useless.

    As I said above, I'm guessing that some company has come out with snap-in-place connectors specifically for sprinkler heads on galvanized pipestands. If they have, then the set-up would not involve as many small parts as I figured out and made use of. I relied on my familiarity with common components, plus common sense.

    But if manufacturers are cranking-out something, they don't distribute the gizmos to the retailers I shop at.

  4. Aug 6, 2017
    frustratedearthmother

    frustratedearthmother Sustainability Master

    Joined:
    Mar 11, 2012
    Messages:
    8,539
    Likes Received:
    2,943
    Trophy Points:
    343
    Location:
    USDA 9a
    And your corn looks good too!

    Joel_BC likes this.
